Damped Track – Fish Rig

A swimming fish rig built with the Damped Track constraint

This is the finished file from our tutorial on wave motion. It shows how a simple chain of bones, each one using a Damped Track constraint, turns one movement of the head into a smooth wave that travels down the body.

The koi fish is bound to an 8-bone armature. Each bone has a Damped Track constraint aimed at the next bone toward the tail, with the influence set to 0.9 so the motion follows through instead of snapping.

Features:

  • Rigged koi fish with an 8-bone armature and automatic weights
  • 7 Damped Track constraints already set up and tuned
  • Rotate or move the head bone and the whole body follows in a wave
  • Extra test objects from the tutorial scene, so you can practice the setup yourself

How to use it:

  1. Select the armature and switch to Pose Mode.

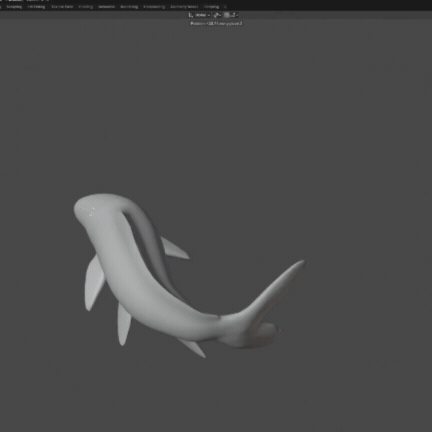

  2. Rotate the head bone from the top view and watch the wave travel to the tail.
  3. Keyframe the head bone to animate swimming. Change the constraint Influence for a looser or stiffer motion.
  4. To rig your own model, follow the tutorial below. The same chain works for tails, ropes, snakes and tentacles.

Perfect for:

  • Learning how Damped Track works with a ready example
  • Fish, eels, snakes, tails, ropes and tentacles
  • Quick secondary motion for animations

Included files:

  • Blender project (.blend), created in Blender 5.1

Tutorial: Blender Wave Motion Rig – The Damped Track Trick!
